Product Details
＋

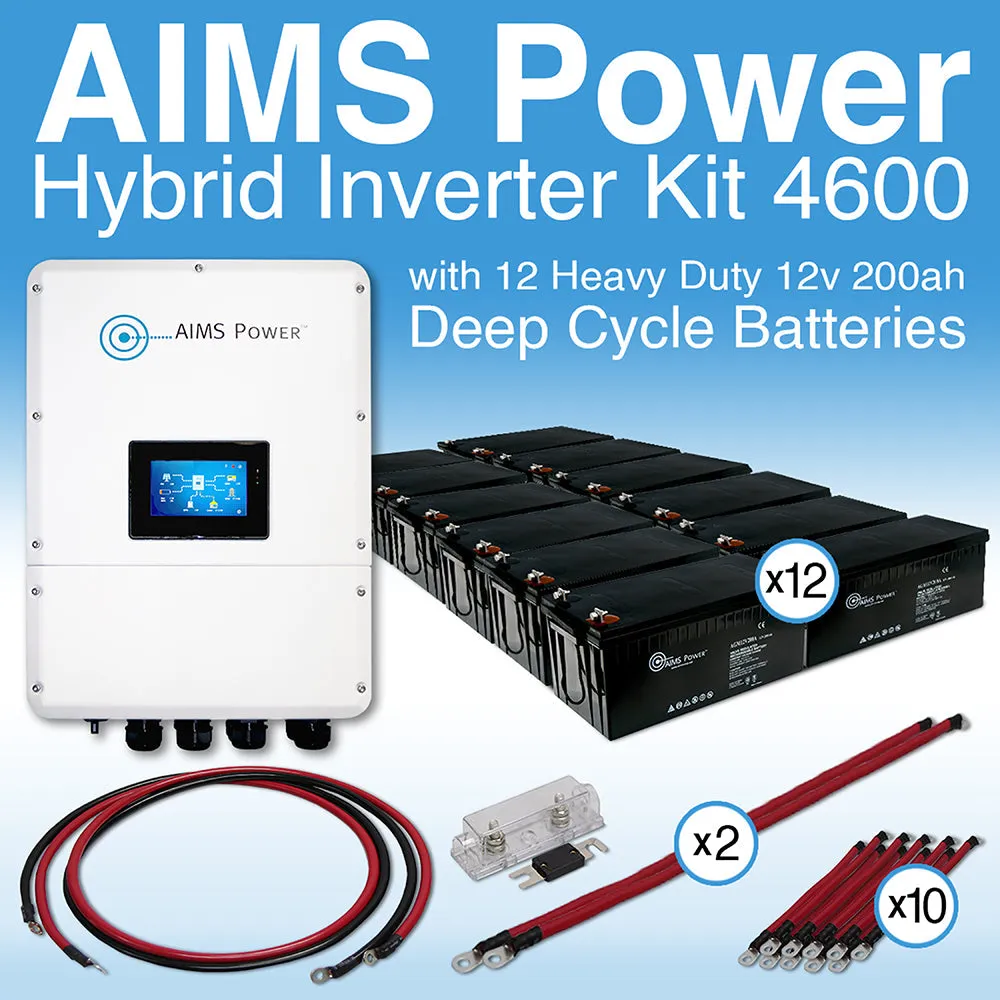

Elevate your energy independence with the AIMS Power Hybrid Inverter and Battery Backup Kit. This kit integrates a powerful 4600-watt hybrid inverter with a 12V 200 amp AGM battery bank, offering versatile performance for grid tie, off-grid, net metering, and generator power applications. It’s solar compatible and guarantees total control and autonomy over your power needs. The hybrid inverter, equipped with a digital touch screen, allows easy setup via modes like Self-Use, Selling First, and Charge First. Now available for purchase!
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- Complete Hybrid Solution: Inverter and battery backup kit for grid tie, off-grid, net metering, and generator power.
- Powerful Hybrid Inverter: 4600-watt with advanced specifications for efficient performance.
- Versatile Battery Bank: 12V 200 amp AGM batteries ensure reliable backup.
- Revolutionary Autonomy: Control and program power usage as per your preferences.

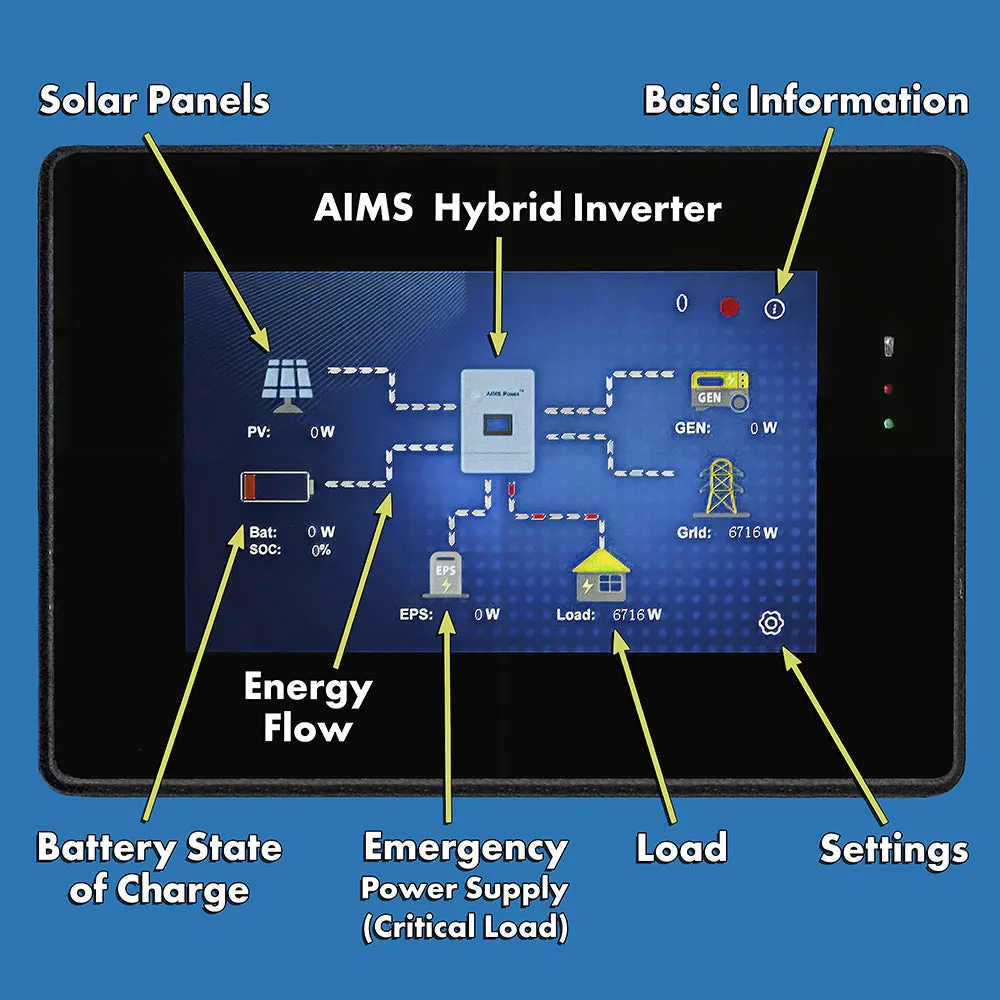

- Digital Touch Screen: Easy setup with modes like Self-Use, Selling First, and Charge First.
- Remote Monitoring App: Monitor and control the system from anywhere using your cell phone.
- Efficient and Safe Operation: Higher voltage ensures extended durability and improved safety.
- One-Stop Customer Support: Troubleshoot with one trusted manufacturer for a hassle-free experience.
- Added Battery Backup: 12V 200 amp AGM batteries included for continuous power during outages.
- 5-Year Warranty: Assurance against manufacturer defects.
Specifications
Specifications
- Max Input Power (kW): 6.9
- Max PV Voltage (V): 660
- MPPT Range (V): 80-550
- Cooling: Natural Convection
- Relative Humidity: 0-100%
- Operating Temperature Range: -25 to 60°C | -77 to 140°F
- Operating Altitude: < 4000 m | <13123 ft without derating
- Noise Emission (dB): <25
- Standby Consumption (W): <10

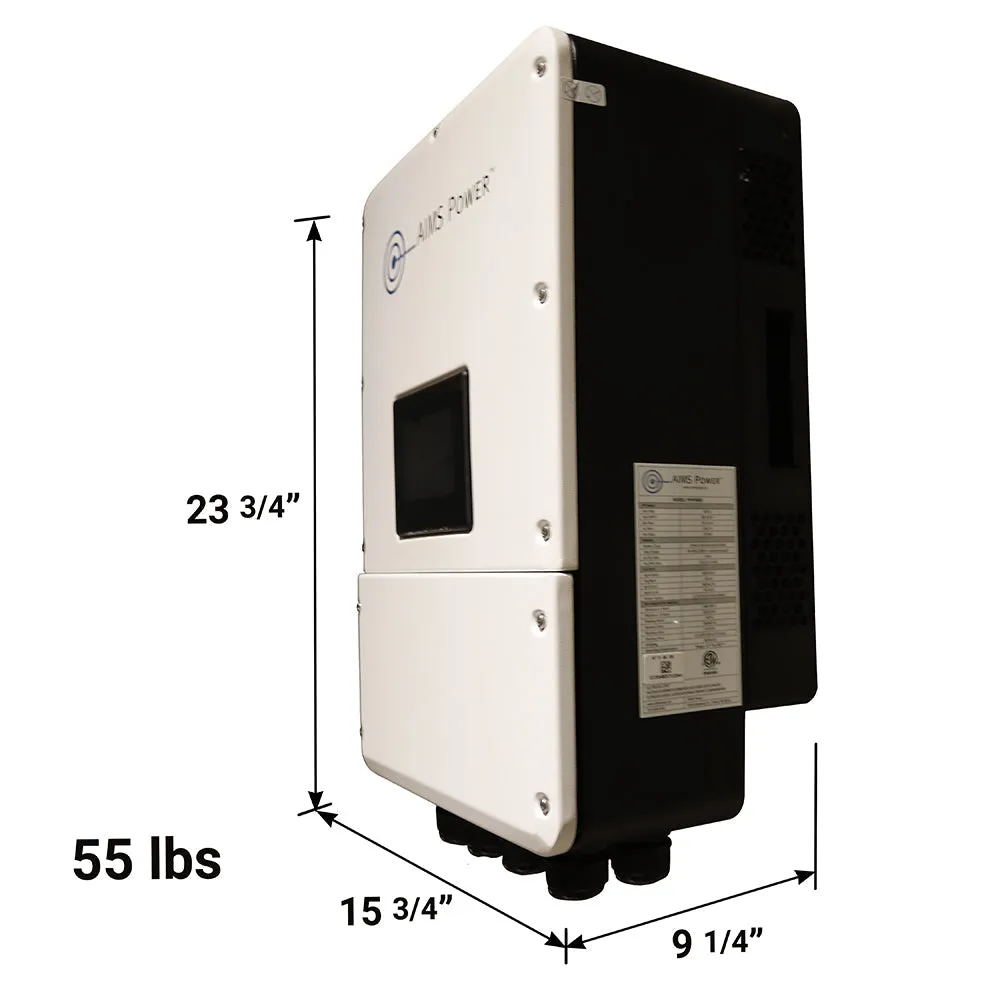

- Mounting: Wall Bracket
- Communication with RSD: SUNSPEC
- Display & Communication Interfaces: Full Color LED, RS485, CAN, Wi-Fi
- Certification & Approvals: UL 1741 SA | CSA 2202 No. 107-01 | UL 1998 | Rules21 | HECO Rule 14 | IP65 | CEC
- EMC: FCC Part 15 Class B
Battery Port
- Max Charge/Discharge Power (kW): 6.9 | 6.9
- Max Charge/Discharge Current (A): 50
- Battery Voltage (V): 230
AC Grid
- Max Continuous Power (kVA): 4.6
- Max Continuous Current (A): 19.5 | 22.5
- Nominal Grid Voltage (V): 211 to 264 @ 240 | 183 to 229 @ 208
- Nominal Grid Frequency (Hz): 60
AC Back-Up & Generator
- Max Peak Current (A)(10 min): 28.8 | 33.2
- Max Peak Power (kVA)(10 min): 6.9 | 6.9
- Nominal AC Voltage L-L(V): 240 | 208
- Nominal AC Voltage L-N(V): 120
- Nominal AC Frequency(Hz): 60
- Output Power Factor: .99 adjustable
- Current THD(%): <3
Efficiency
- CEC Efficiency(%): 97
- Max Efficiency(%): 97.6
- PV to Battery Efficiency(%): 98.1
- Battery to AC Efficiency(%): 96.8
Protection
- PV Reverse Polarity Protection: YES
- Battery Reverse Polarity Protection: YES
- Over Current/Voltage Protection: YES
- Anti-Islanding Protection: YES
- AC Short Circuit Protection: YES
- Residual Current Detection: YES
- Ground Fault Monitoring: YES
- Insulation Resister Detection: YES
- PV Arc Detection: YES
- Rapid Shut Down/Disconnect: YES
- Enclosure Protect Level: IP65 | NEMA4X
Battery Specs
- Nominal Voltage: 12V
- Capacity: 200 amp hours deep cycle AGM
- Internal Resistance: Fully Charged - 4mOhms
- Self-Discharge: 3% per month at 20°C (average)
- Operating Temperature Range: Discharge -2060°C, Charge -1060°C, Storage -20~60°C
- Max. Discharge Current (77°F): 1000A (5s)
- Short Circuit Current: 3300A
- Charge Methods: Constant Voltage Charge (Cycle use 14.4-14.7V, Standby use 13.6-13.8V)
- Maximum Charging Current: 30A
- Temperature Compensation: -30mV/°C
- Dimensions & Weight: 20.5″ L x 8.78″ H x 9.37″ W, 138 lb
- Warranty: 5 years against manufacturer defects.
