Product Details
＋

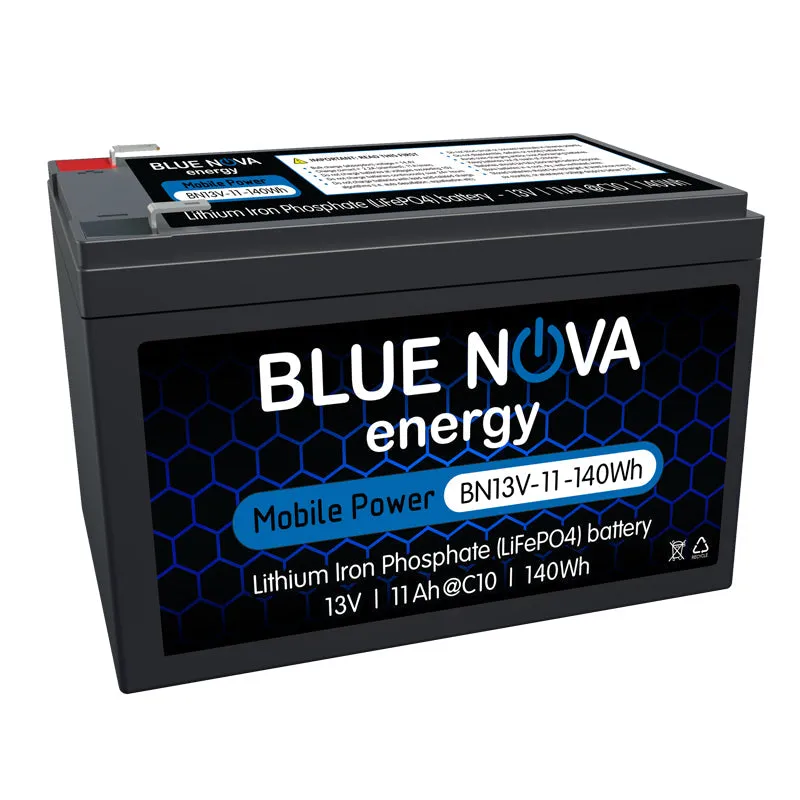

The Mobile Power Series (MPS) range is perfectly positioned as a drop-in replacement for Lead Acid batteries, giving you a high-quality, light and ultra-reliable solution for your home, vehicle use, outdoor and security. All MPS batteries feature an integrated Battery Management System, are IP56 water and dust resistant and are highly durable
Product Features
- Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
- Integrated battery management System (BMS)
- Light weight and compact
- Water & dust resistant (IP56)
- Highly durable ABS enclosure
- Drop-in lead acid replacement
- 3 Year Warranty
Technical Specifications
| Colour: | Black |
| Material: | ABS |
| Battery Chemistry: | LiFePO4 (Lithium Iron Phosphate) |
| Usable Capacity: | 140 Wh @C10, 25°C |
| Cycle Life @ 100% / 80% / 50% DoD: | > 2000 cycles (140 Wh @C10, 25°C) / > 3000 cycles (112 Wh @C10, 25°C) / > 5000 cycles (70 Wh @C10, 25°C) |
| Charge Current: | 11A Continuous (max) |
| Discharge Current: | 11A Continuous | 20 A burst (2C, 30 seconds) |
| Over-current Protection: | 25 A |
| Bulk Voltage: | 14.4 VDC |
| Charge and Discharge Efficiency: | 96% - 99% @C1 |
| Discharge Voltage (Min.): | 11.6 V |
| Nominal Voltage: | 13 VDC |
| Operating Voltage: | 11.6 VDC – 14.4 VDC |
| Over-voltage Cutout: | 15.6 V |
| Self-discharge Rate: | 3% per month |
| Under-voltage Cutout: | 10.0V |
| Height: | 100mm |
| Width: | 151mm |
| Depth: | 99mm |
| Operating Temperature: | Charge: 0°C – 45°C | Discharge: -20°C – 65°C |
| IP Rating: | IP56 |
| Weight: | 1.5kg |
