Description:
Product Name: Car Backup Camera Kit

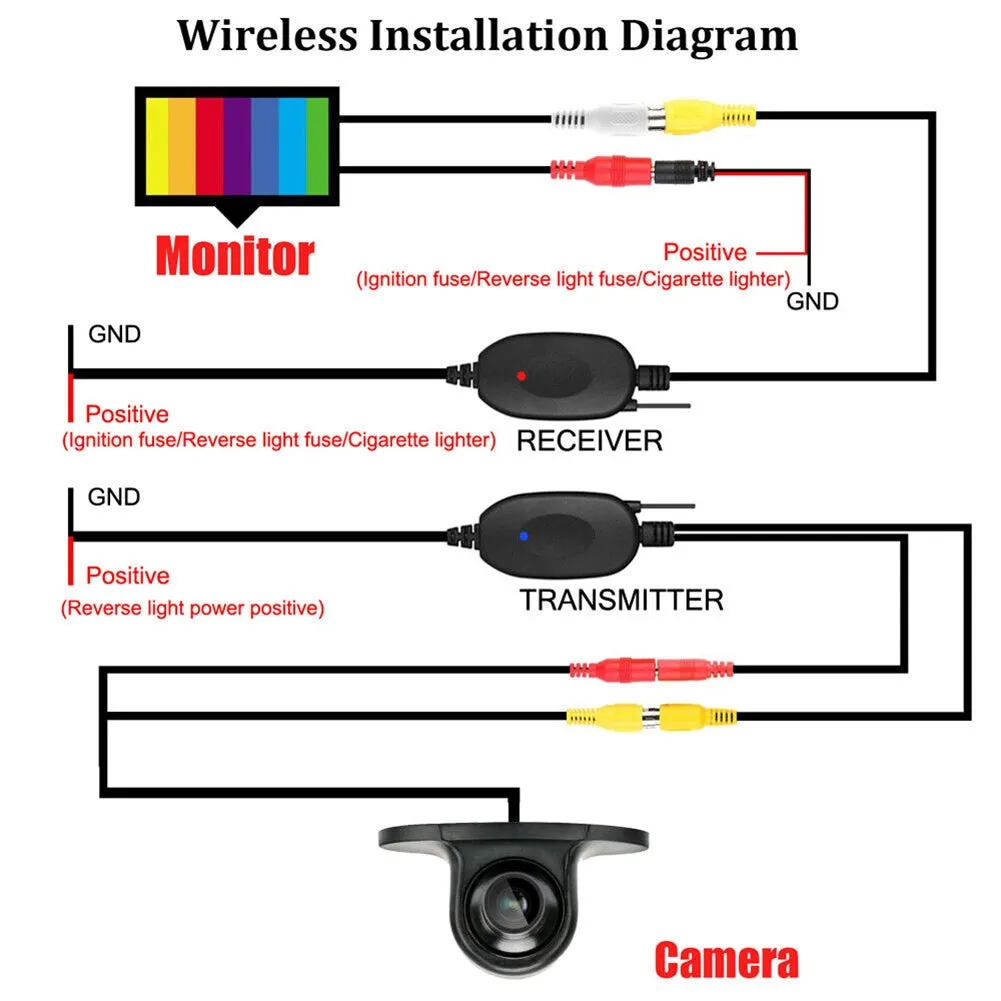

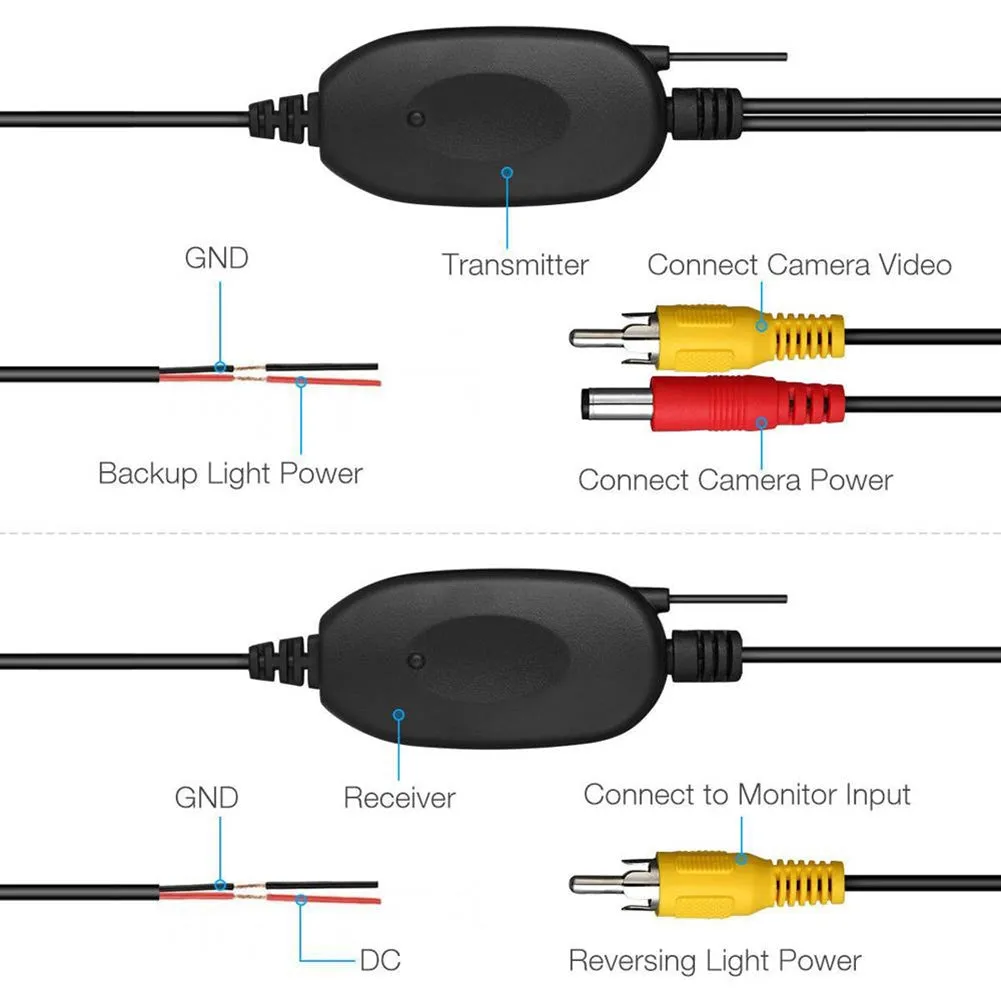

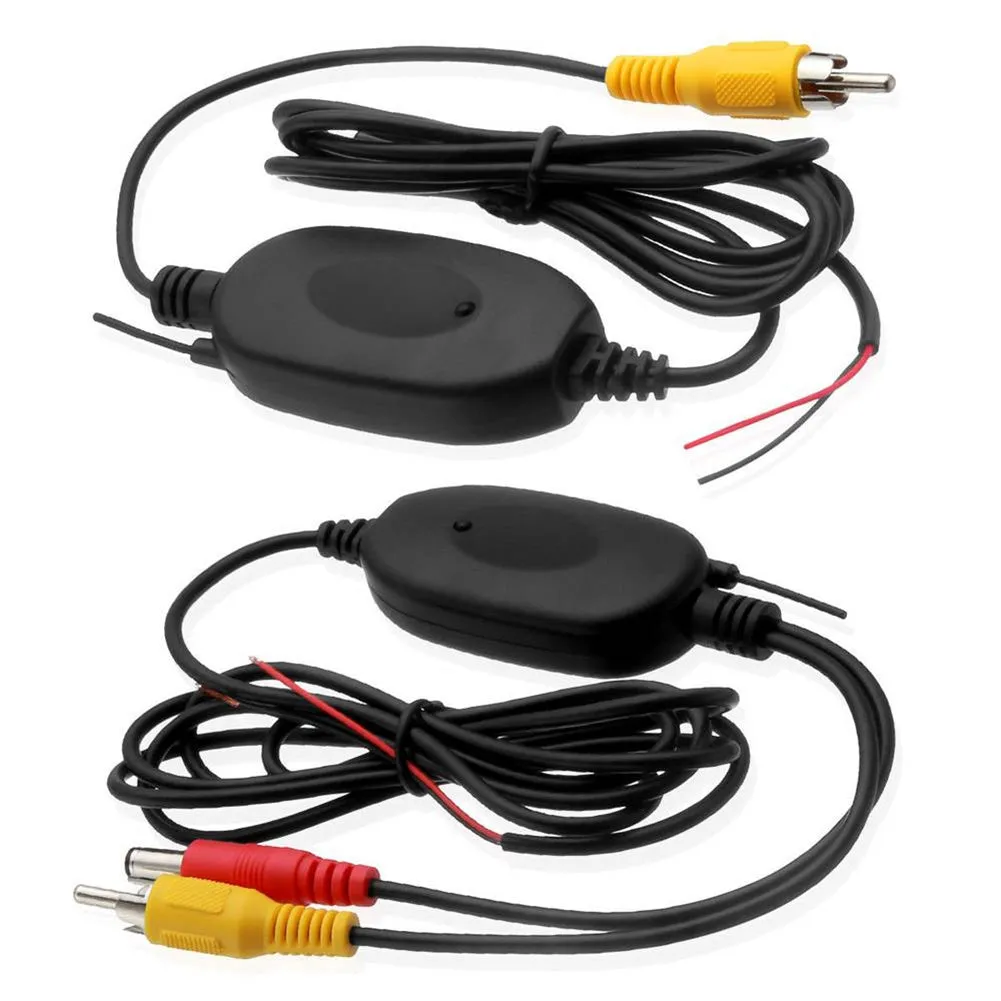

Wireless 2.4GHz transmitter/receiver package:
Working range: Up to about 10 meters (silent)
Can connect rear view camera and front view screen

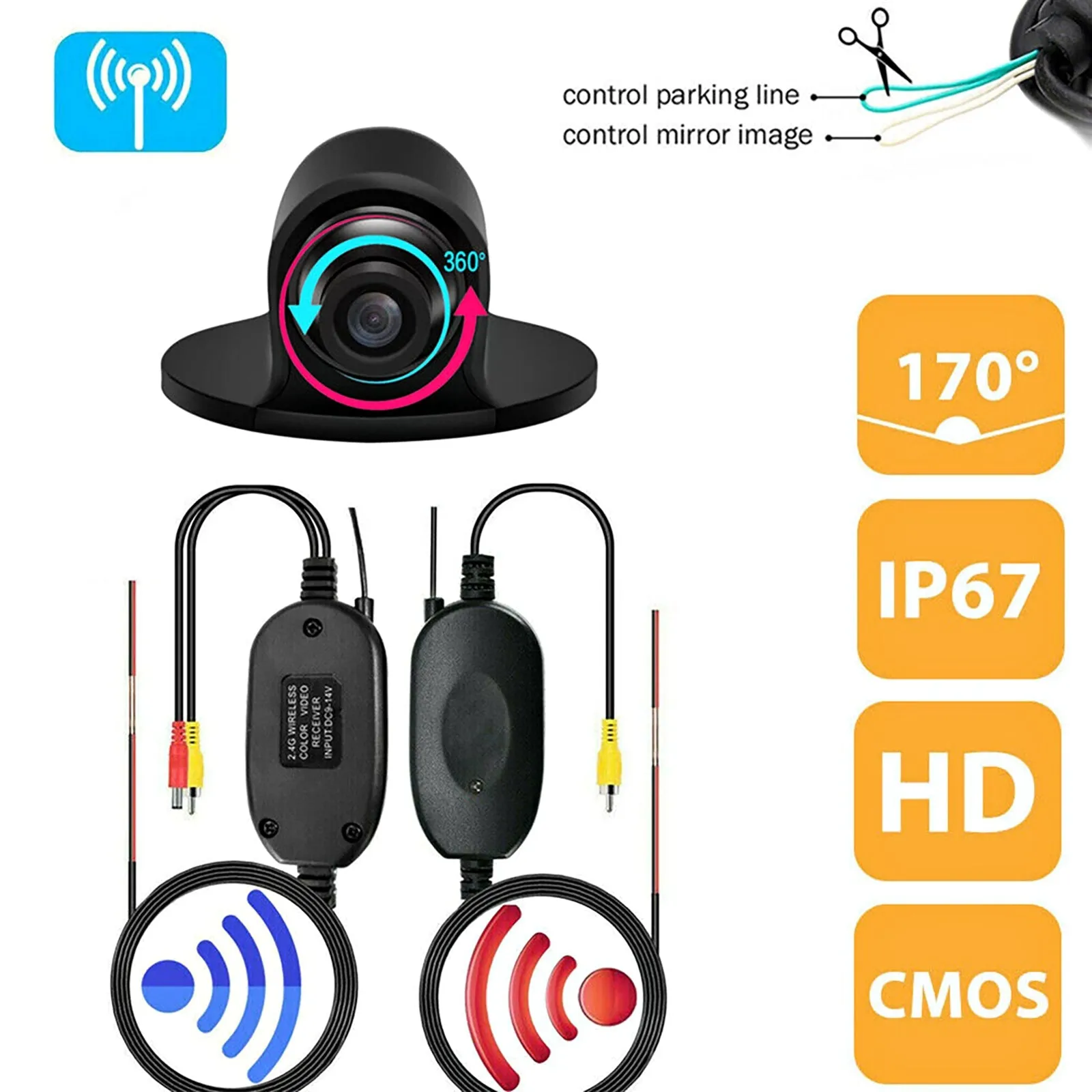

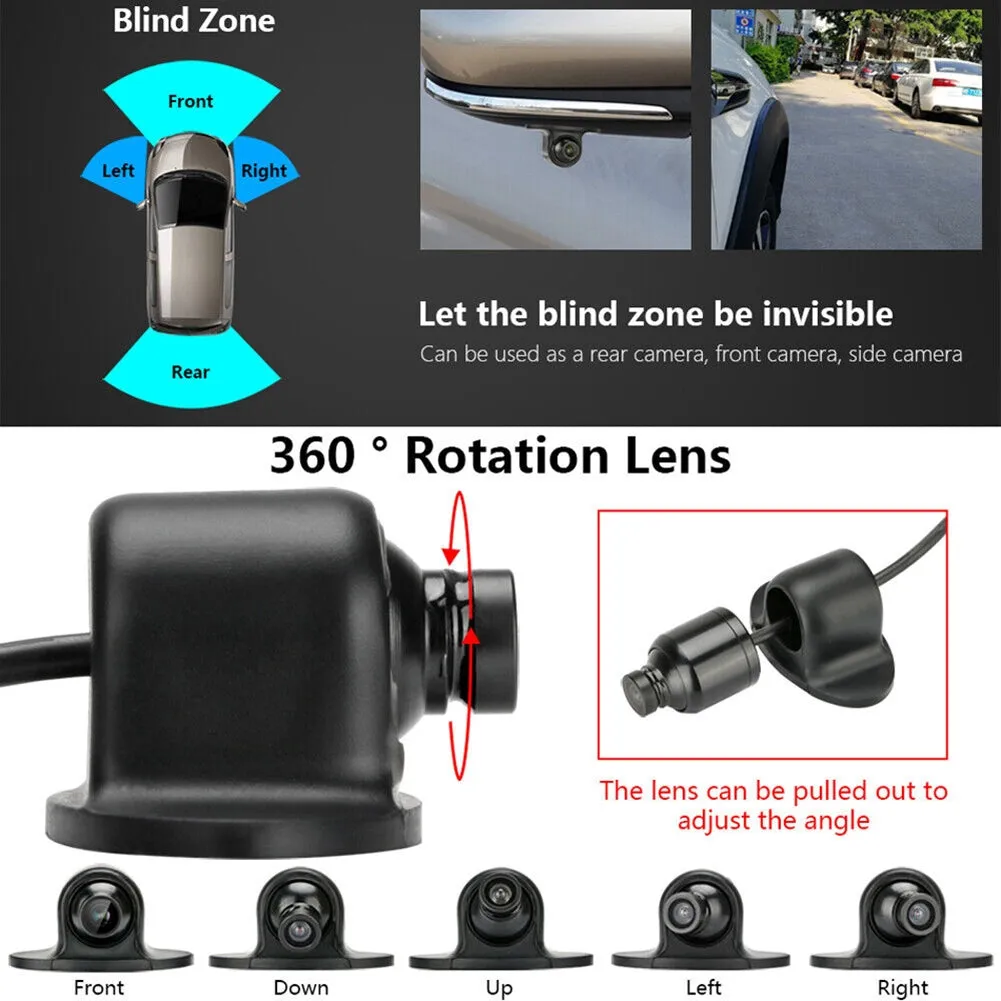

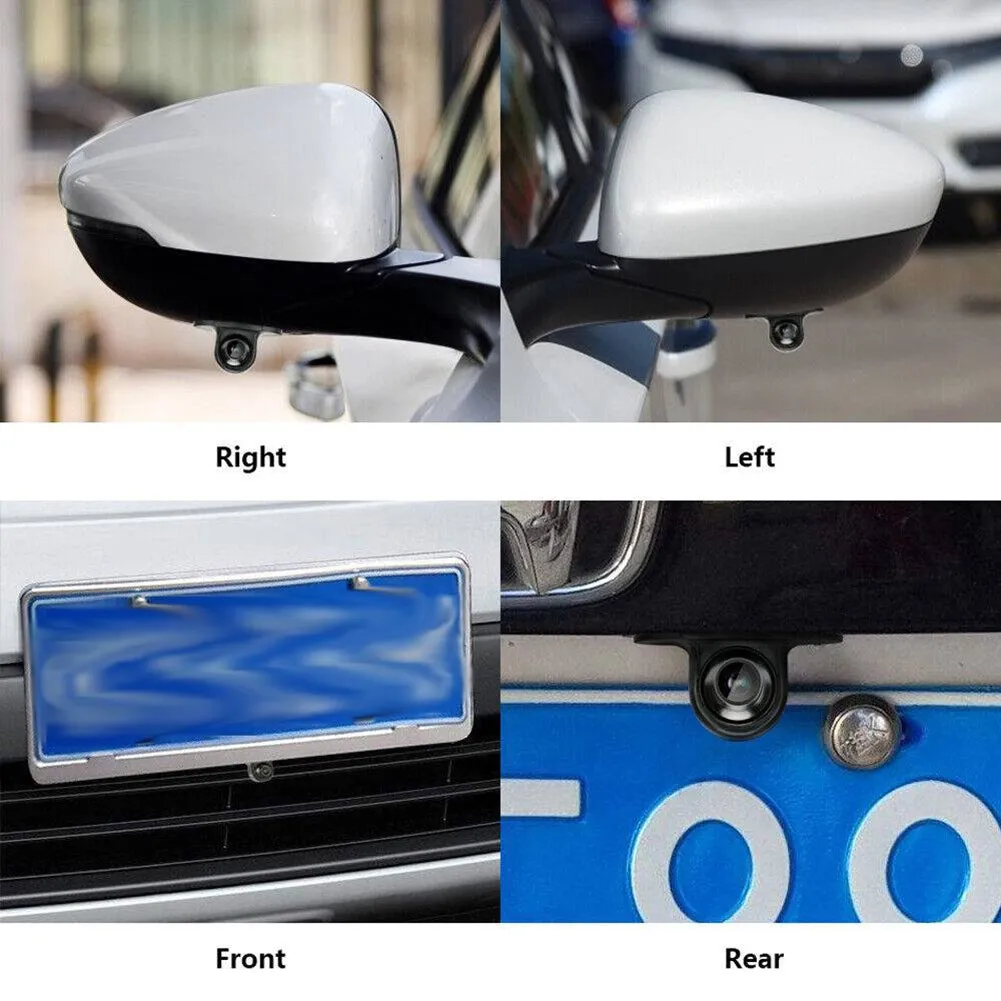

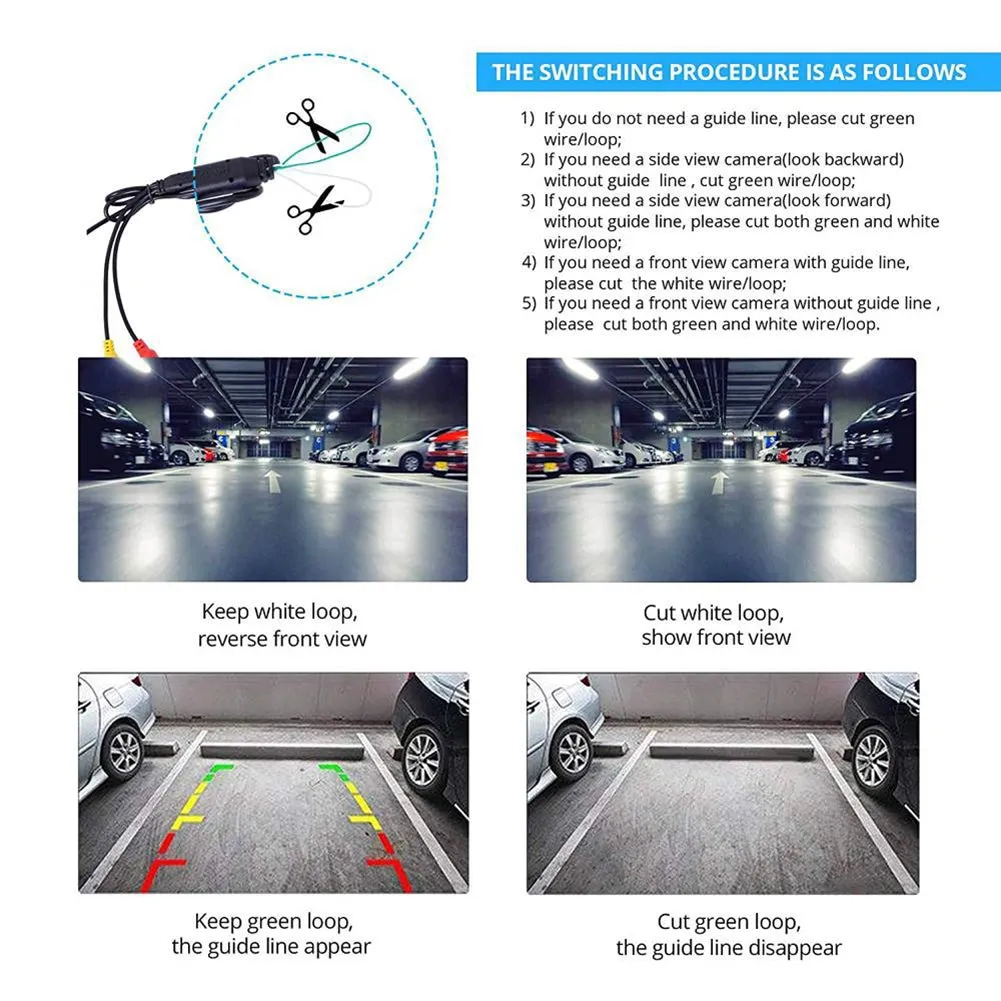

The camera can be changed to front/side view or rear view format
Suitable for all RCA composite video connections
Power supply: DC 12V
Transmitter/receiver cable length: 1.4 meters
Car rear view camera:
Sensor 7440 1/4 inch color CCD
Television system: NTSC NTSC
Effective pixels: 628 x 582 pixels 628 x 582 pixels
Scanning system: 2:1 interlaced scanning
Internal synchronization system
Resolution 420 TV cable

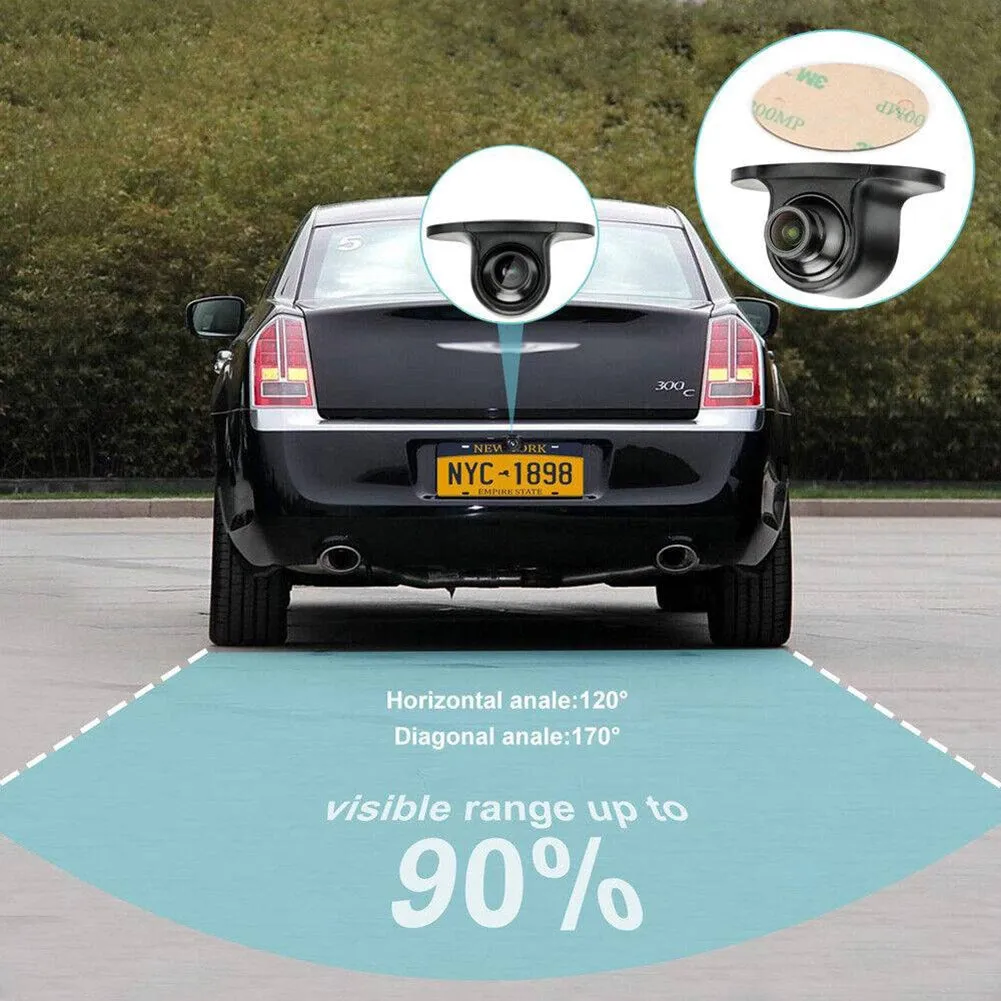

Lens angle: 2.8mm/120 ° -1.8mm/170 °
Sensor area 5.961 mm x 4.276 mm
Video output 1.0 vp-p, 75 ohms
Signal to noise ratio greater than 48db
Waterproof IP67-IP68
Minimum illumination 0.2 Lux/F1.8 (0 Lux when using LED)
Current consumption: not exceeding 300mA
Power supply: DC 12V
Working temperature: -20 ℃ -60 ℃ (maximum relative humidity 95)
Storage temperature: -30 ℃ -60 ℃ (relative humidity 95%, highest value)
Automatic white balance for other items. AGC and BLC

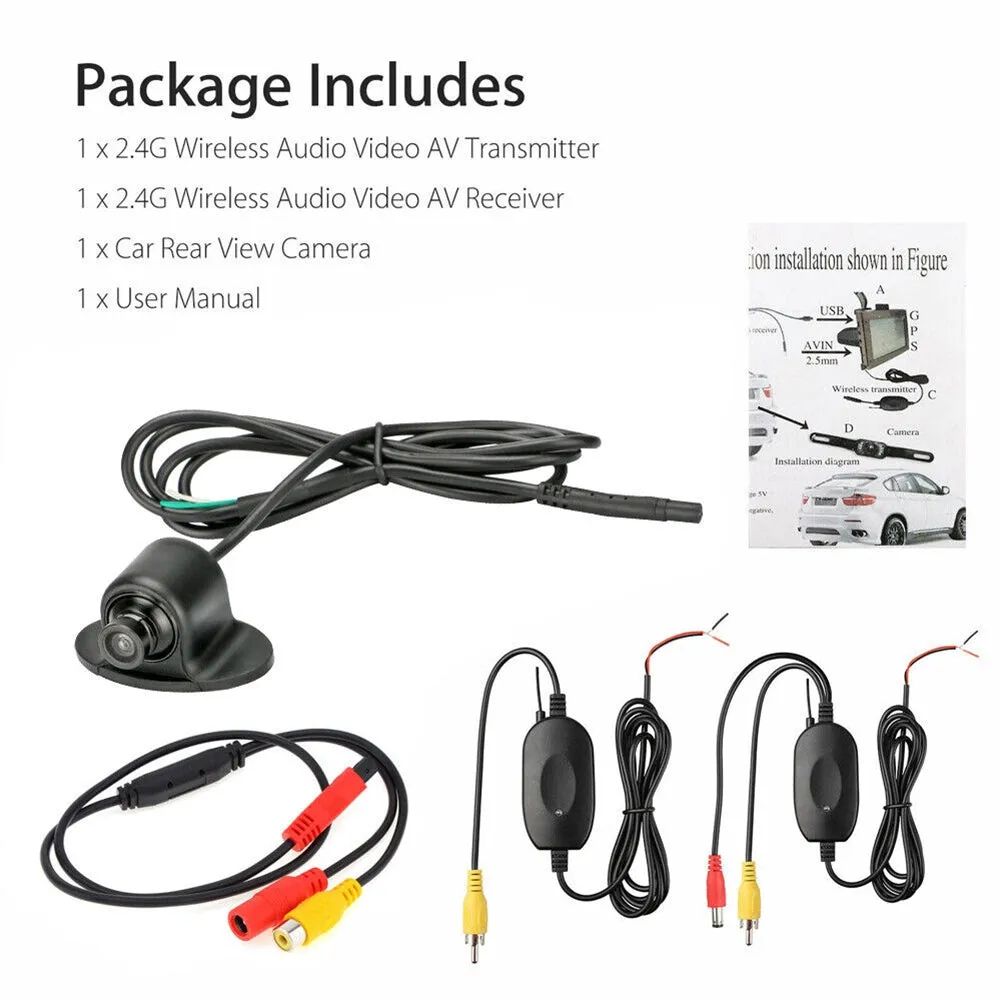

Packing list:
1 x 2.4G Wireless Audio Video Transmitter
1 x 2.4G Wireless Audio Video Receiver
1 x Car Rear View Camera
1 x User Manual
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
