Product Description
-
4MP, 1/3” CMOS image sensor, low illuminance, high image definition
-
Outputs 4MP (2560 × 1440) 25/30 fps, and supports max. 4MP (2688 × 1520) 20 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max. IR distance: 30 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
-
12V DC/PoE power support
-
IP67, IK10 protection
-
Features
-
Smart (H.265 & H.264 )
-
Motion Detection
-
Wide Dynamic Range (WDR)
-
Smart IR
-
Protection (IP67, IK10, wide voltage)
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Network Camera |
||||
|
Series |
Entry |
||||
|
Product Code |
DH-IPC-HDBW1431EP-S4 |
||||
|
Camera |
|||||
|
Image Sensor |
1/3”4Megapixel progressive CMOS |
||||
|
Effective Pixels |
2688 (H) ×1520 (V) |
||||
|
Rom |
128 MB |
||||
|
Ram |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.03 Lux F2.0 |
||||
|
IR Distance |
30 m (98.4 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR Leds Number |
3 |
||||
|
Pan/Tilt/Rotation Range |
Horizontal: 0°–355° Vertical: 0°–65° Rotation: 0°–355° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F2.0 |
||||
|
Field Of View |
2.8 mm: Horizontal: 93° Vertical: 53° Diagonal: 111° 3.6 mm: Horizontal: 81° Vertical: 44° Diagonal: 95° |
||||
|
IRIS Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.4 m (4.6 ft) |
||||
|
Dori Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8mm |
50.0 M (183.7 Ft) |
22.4 m (73.5 ft) |
11.2 m (36.7 ft) |
15.1 m (18.4 ft) |
|
|
3.6mm |
80.0 M (262.5 Ft) |
32.0 m (105.0 ft) |
16.0 m (52.5 ft) |
8.0 m (26.2 ft) |
|
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |

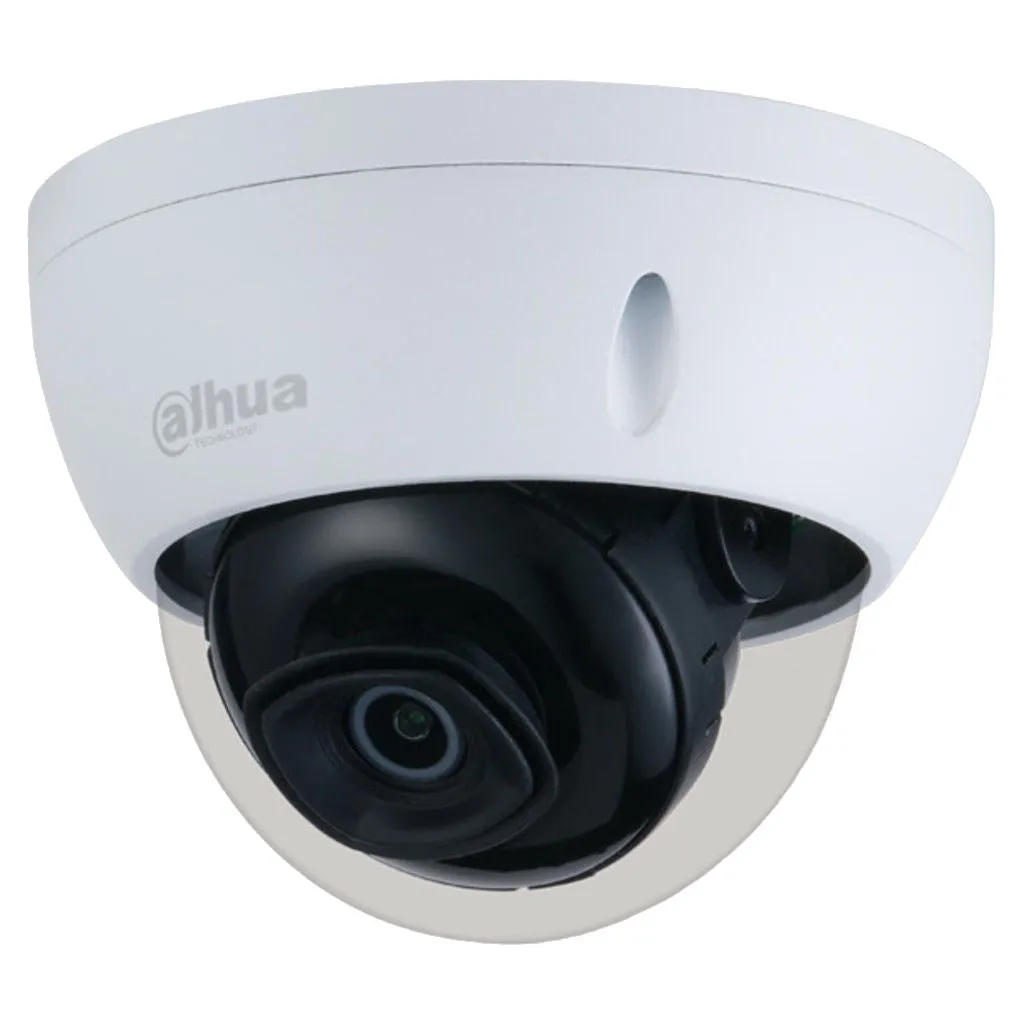

Dahua Entry IR Fixed-focal Dome Netwok Camera 4MP DH-IPC-HDBW1431EP-S4$ 84.59 $ 65.07 Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
