Product Description
-
5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs max. 5MP (2592 × 1944) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max IR distance: 30 m
-
ROI, SMART H.264 /H.265 , flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB Micro SD card
-
12V DC/PoE power supply
-
IP67, IK10 protection
-
Functions
-
Smart H.265 & Smart H.264
-
Wide Dynamic Range(WDR)
-
Starlight
-
Intelligent Video Analysis (IVS)
-
Cyber Security
-
Protection (IP67, IK10, wide voltage)
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |

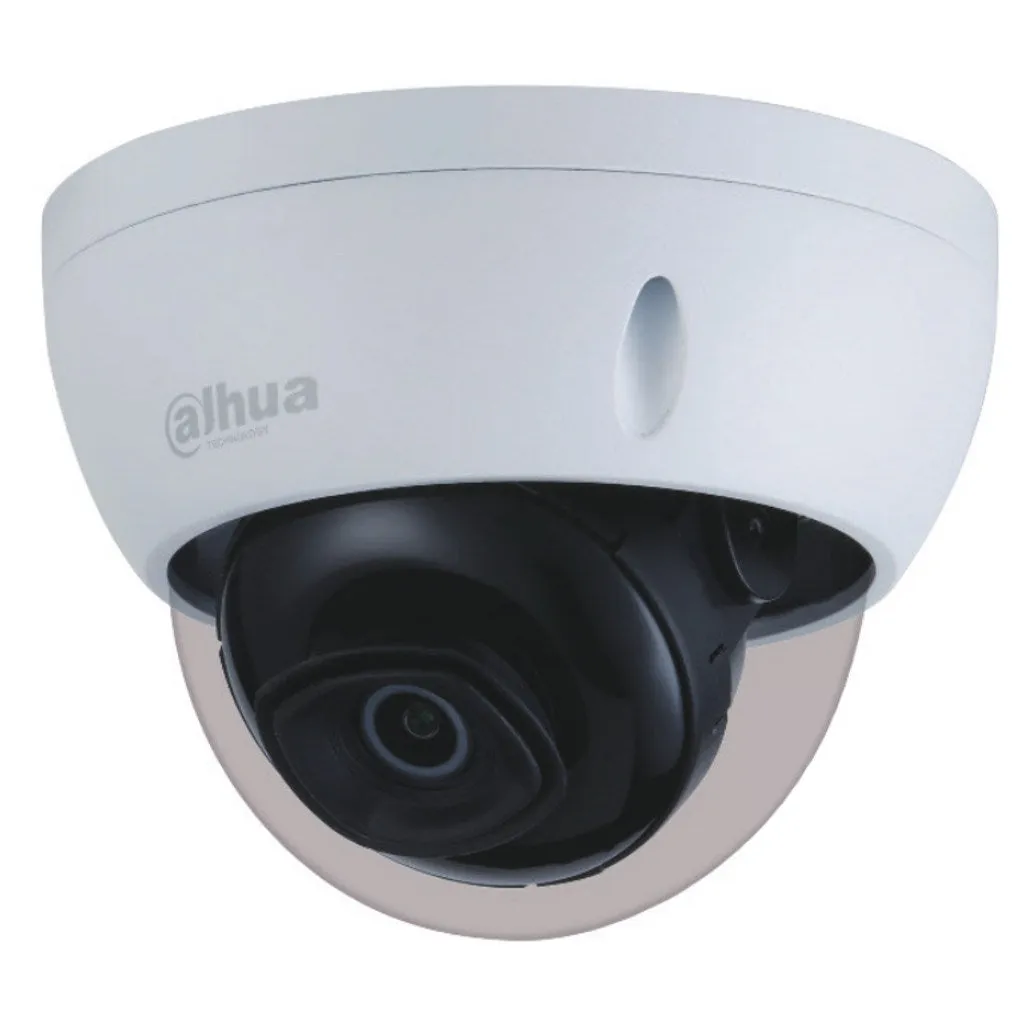

Dome Camera |
||||
|
Series |
Lite |
||||
|
Product Code |
DH-IPC-HDBW2531EP-S-S2 |
||||
|
Camera |
|||||
|
Image Sensor |
1/2.7” 5Megapixel progressive CMOS |
||||
|
Max. Resolution |
2592 (H) × 1944 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
256 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.008 Lux @ F1.6 |
||||
|
S/N Ratio |
> 56 dB |
||||
|
Illumination Distance |
30 m (98.43 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
3 (IR LED) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 F1.6 |
||||
|
Field Of View |
2.8 mm: Horizontal 103.0° × Vertical 71.0° × Diagonal 132.0° 3.6 mm: Horizontal: 84.0° × Vertical 58.0° × Diagonal 110.0° |
||||
|
IRIS Type |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) |
||||
|
Dori Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8mm |
56 M (183.73 Ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (19.37 ft) |
|
|
3.6mm |
80 M (262.47 Ft) |
32 m (104.99 ft) |
16 m (52.49 ft) |
8 m (26.25 ft) |
|
|
Smart Event |
|||||
|
IVS |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
||||
|
Smart Codec |
Smart
H.265 /
$
90.19
$
69.38
$
81.95
$
63.04
$
72.79
$
22.14
$
90.03
$
69.25
$
84.23
$
64.79
$
59.79
$
45.99
$
54.99
$
78.77
$
60.59
$
60.87
$
46.82
$
60.00
| ||||
