Product Details

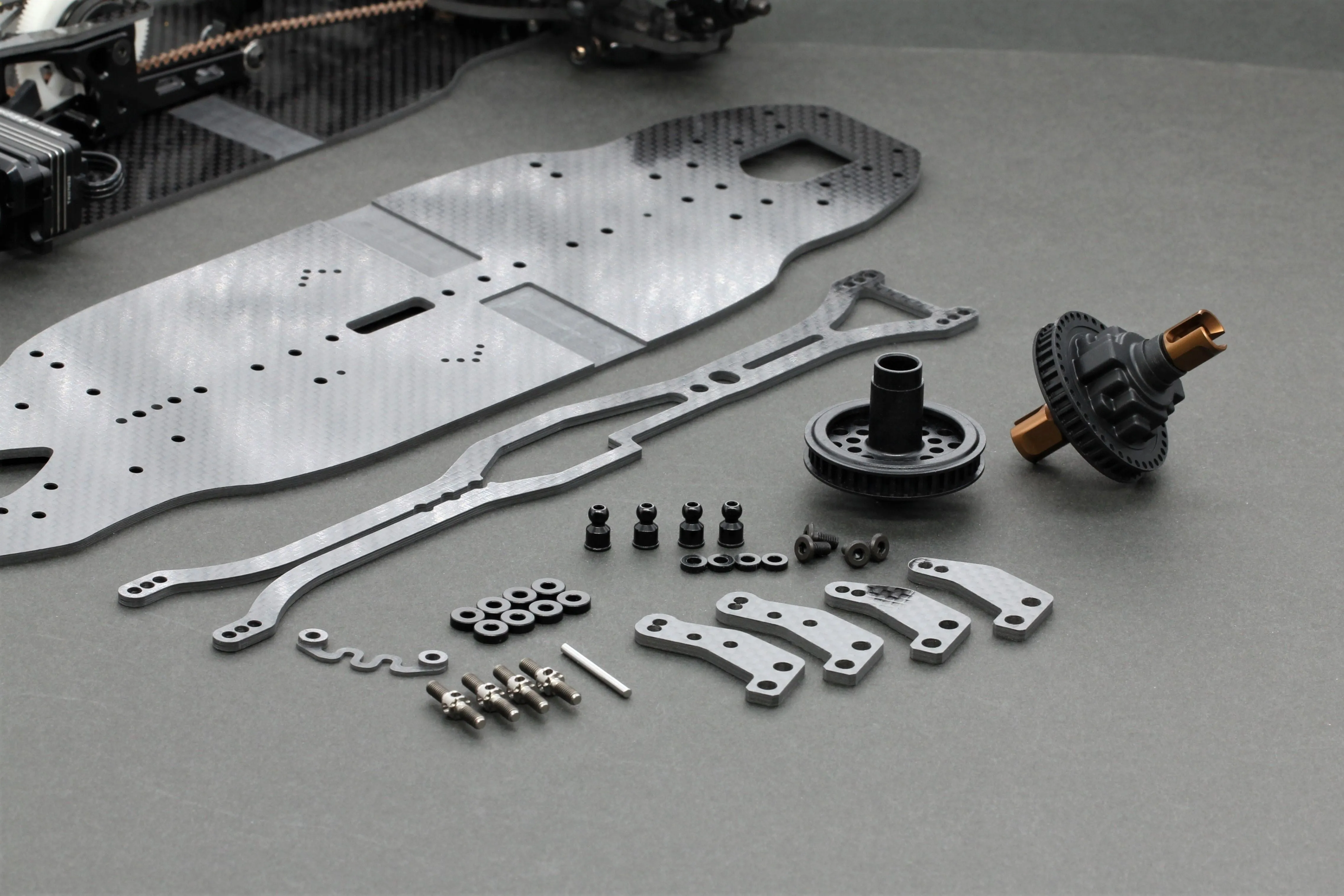

New parts for Destiny RX-10SR 3.0R Touring Car.

  • New high grade graphite main chassis.
  • New Lightweight front spool set.
  • New Lightweight rear gear differential set.
  • New titanium camber screw M3x18mm.
  • 3x7x2mm aluminum lower arm spacer set.

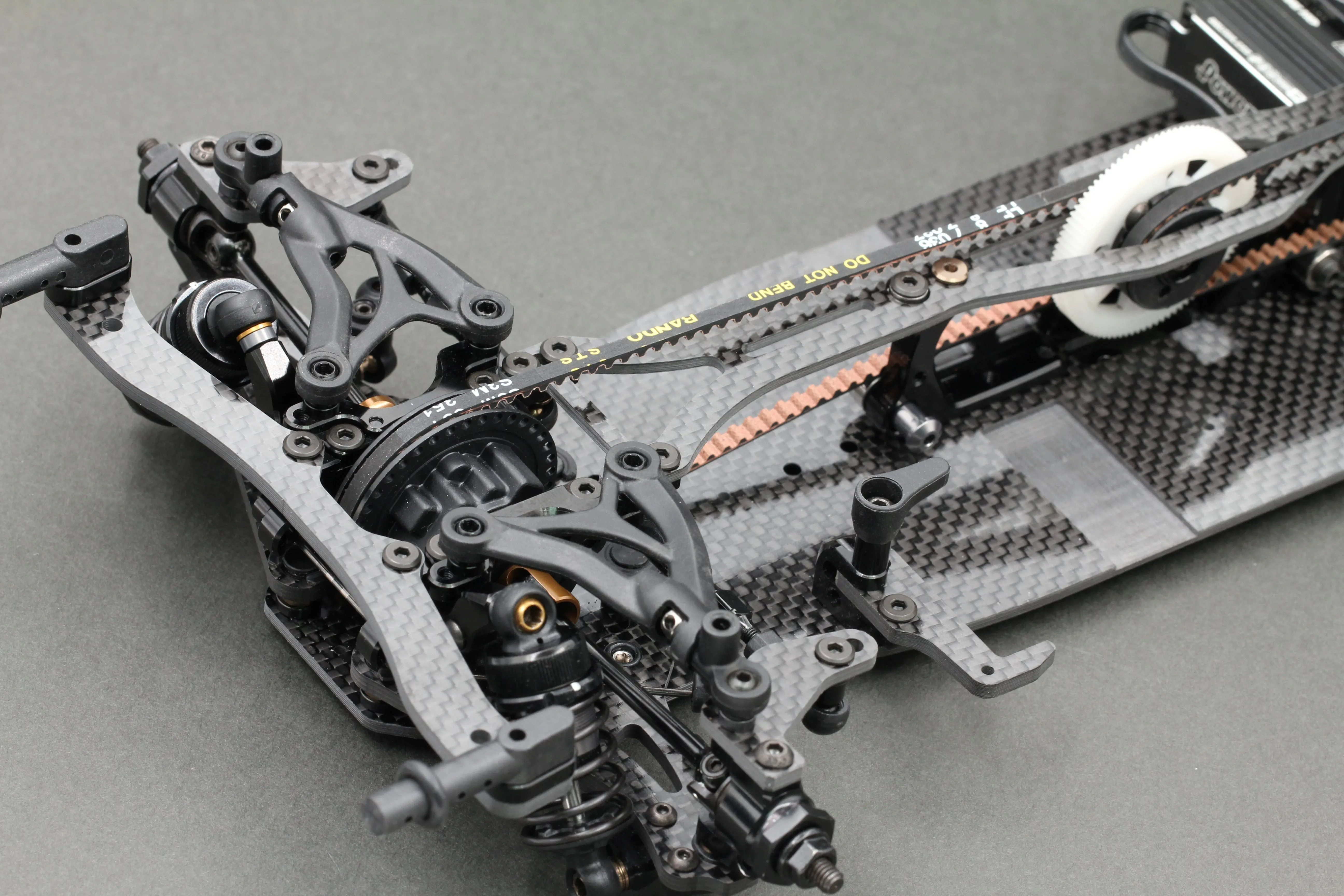

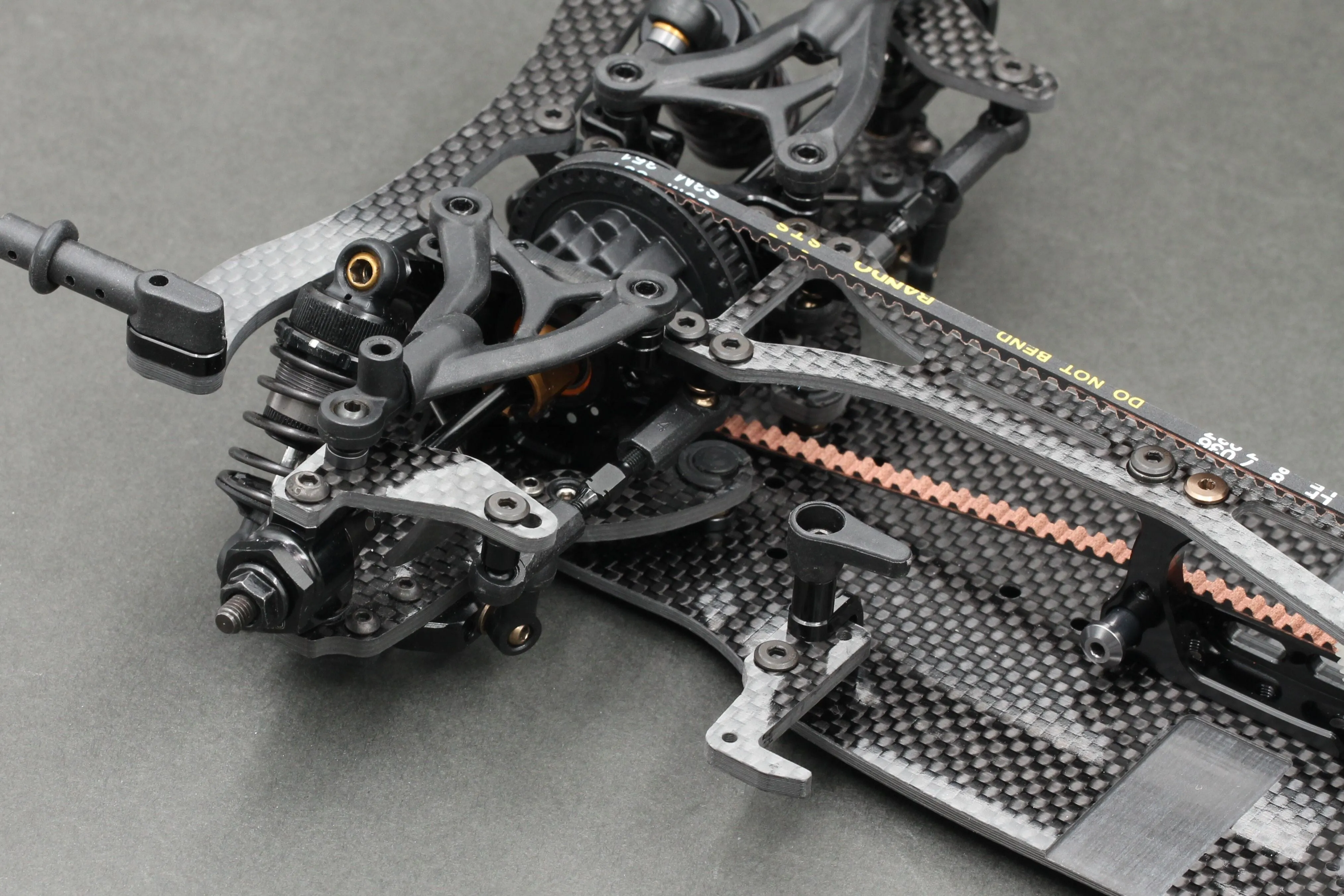

  • New graphite front and rear steering plate set.
  • New single piece upper deck.

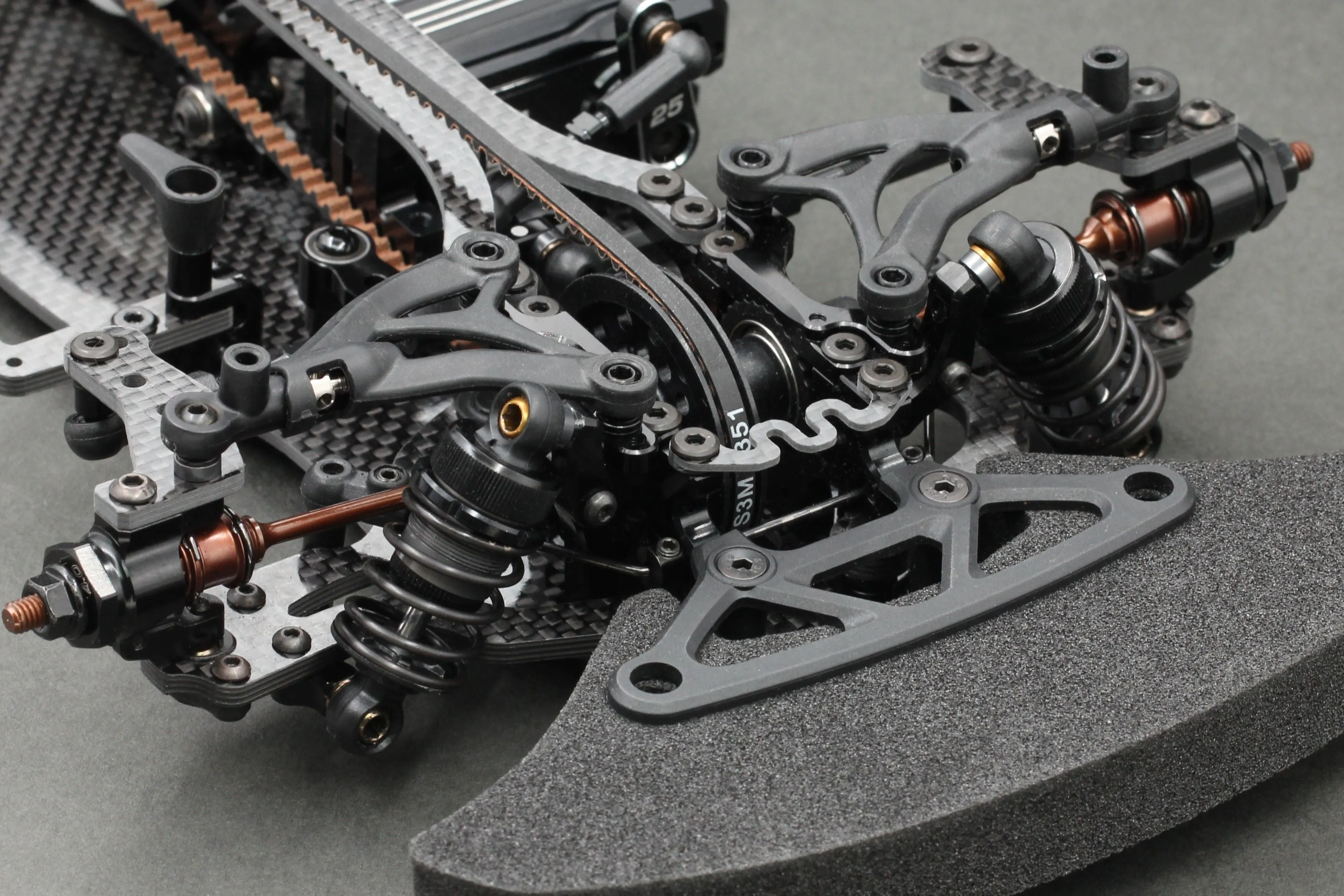

  • New wave shape graphite front brace.


Destiny RX-10SR 3.0 Features:

  • Interchangeable lower arm for front, rear, left and right.
  • Smooth movement suspension by hard coated 5mm lower arm pivot balls and high quality bushing.
  • Graphite lower arm length (track width) adjustable by difference orientation of steering block pivot ball holder, four length was selectable by two different holders.
  • Front and rear aluminium lower shock mount.
  • Front and rear steering block made by high grade 7075 aluminium and interchangeable.
  • Front and rear steering plate swap for two difference steering response setup.
  • Large size 6x11x4mm ball bearing used in inner of steering block for more reliable and efficiency.
  • Spring steel front double joint drive shaft, and 7075 aluminium rear swing shaft.
  • Interchangeable front and rear upper aluminium bulkheads. Front caster 4/5 deg, rear caster 0/1 deg adjustable by different orientation of bulkheads.
  • Mounted the pivot balls by screws through a groove and a thread on bulkhead. Upper arm free movement adjustable for active caster setting simply.
  • New lower bulkheads install with upper bulkheads with centering insert and make more reliable.
  • Laser engraved marking on bulkhead for easy identify differential position.
  • Lower position of front and rear anti-roll bar mounting.

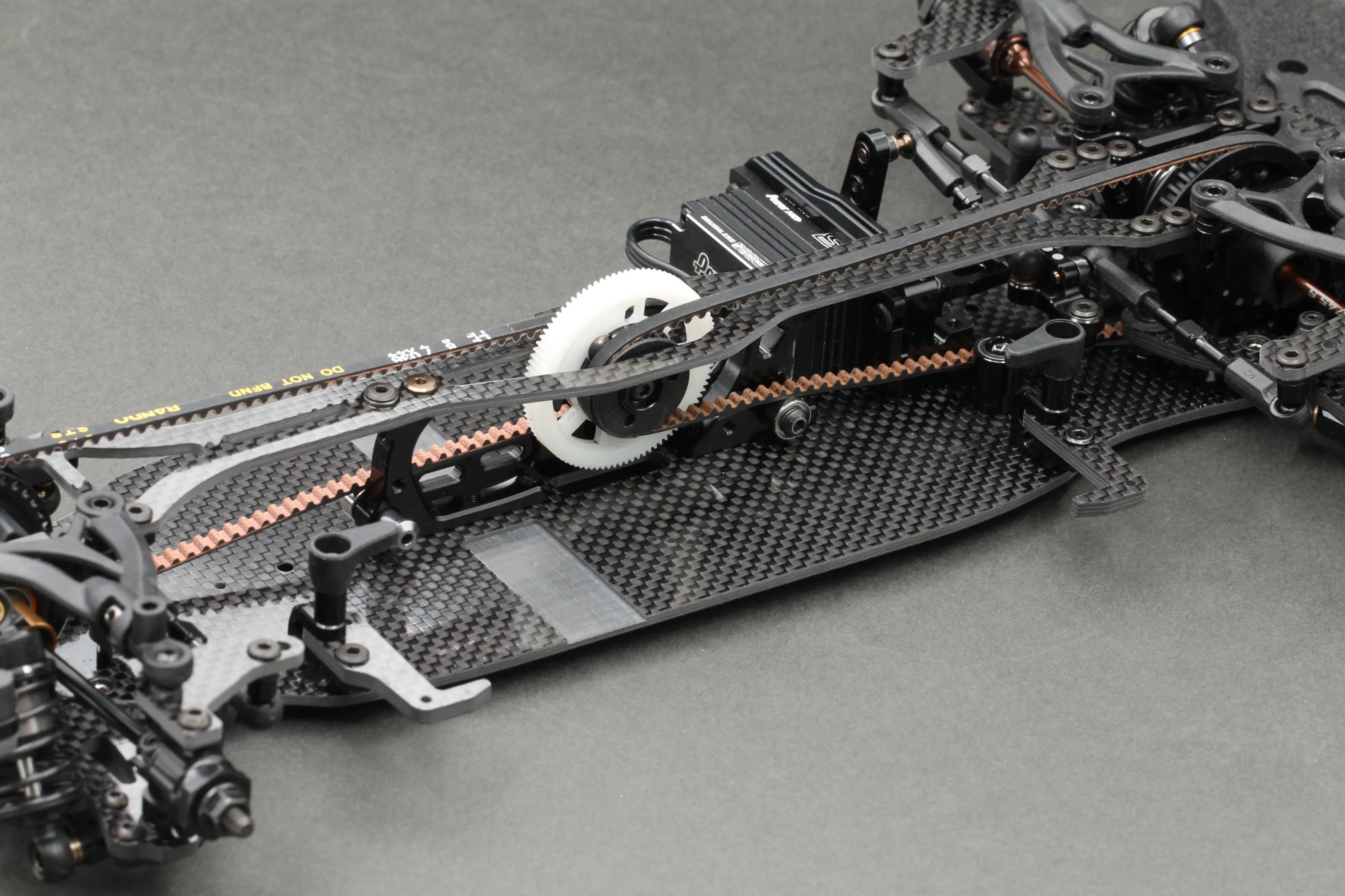

  • New single piece design motor mount with Multi-Flex Chassis adjustment. Featured adjustable front and rear belt tensioners and battery backstops.
  • Shock tower composed by two pieces, easy installation and tweak free alignment.
  • Precise shock angle adjustment by shim.
  • Shock tower mounted to chassis for more stability and improved the traction.
  • 7075 aluminium lightweight hardened wheel hub.
  • 7075 aluminium steering centre plate and steering arms with ball bearings.
  • 7075 aluminium lightweight floating servo mount.
  • servo is able to mounted directly.
  • Swap the graphite battery holders to change the battery forward/backward position.
  • Quick release battery backstop and height adjustable to compatible difference size battery
  • Battery placement fully fine adjustable.

3.0

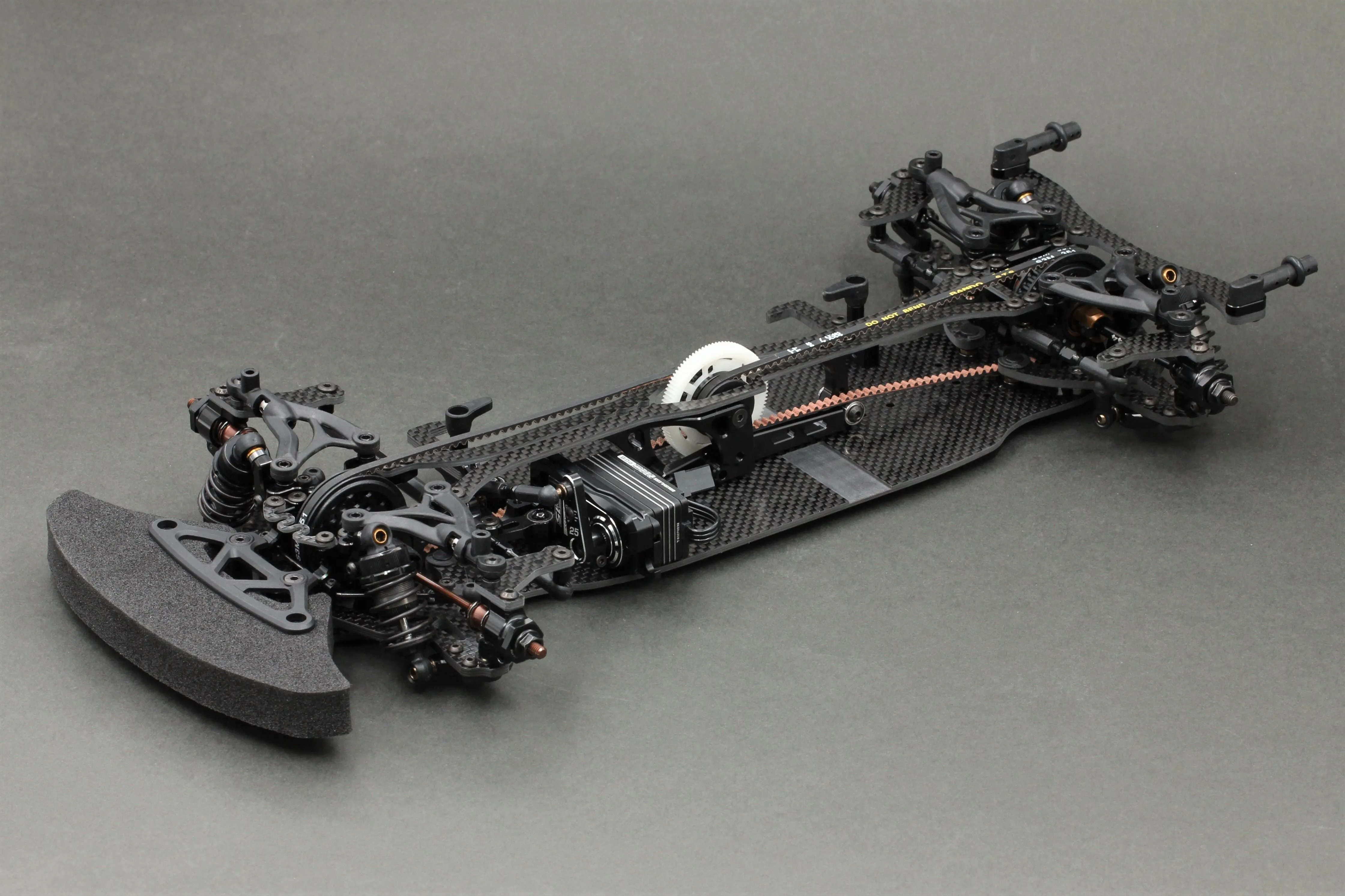

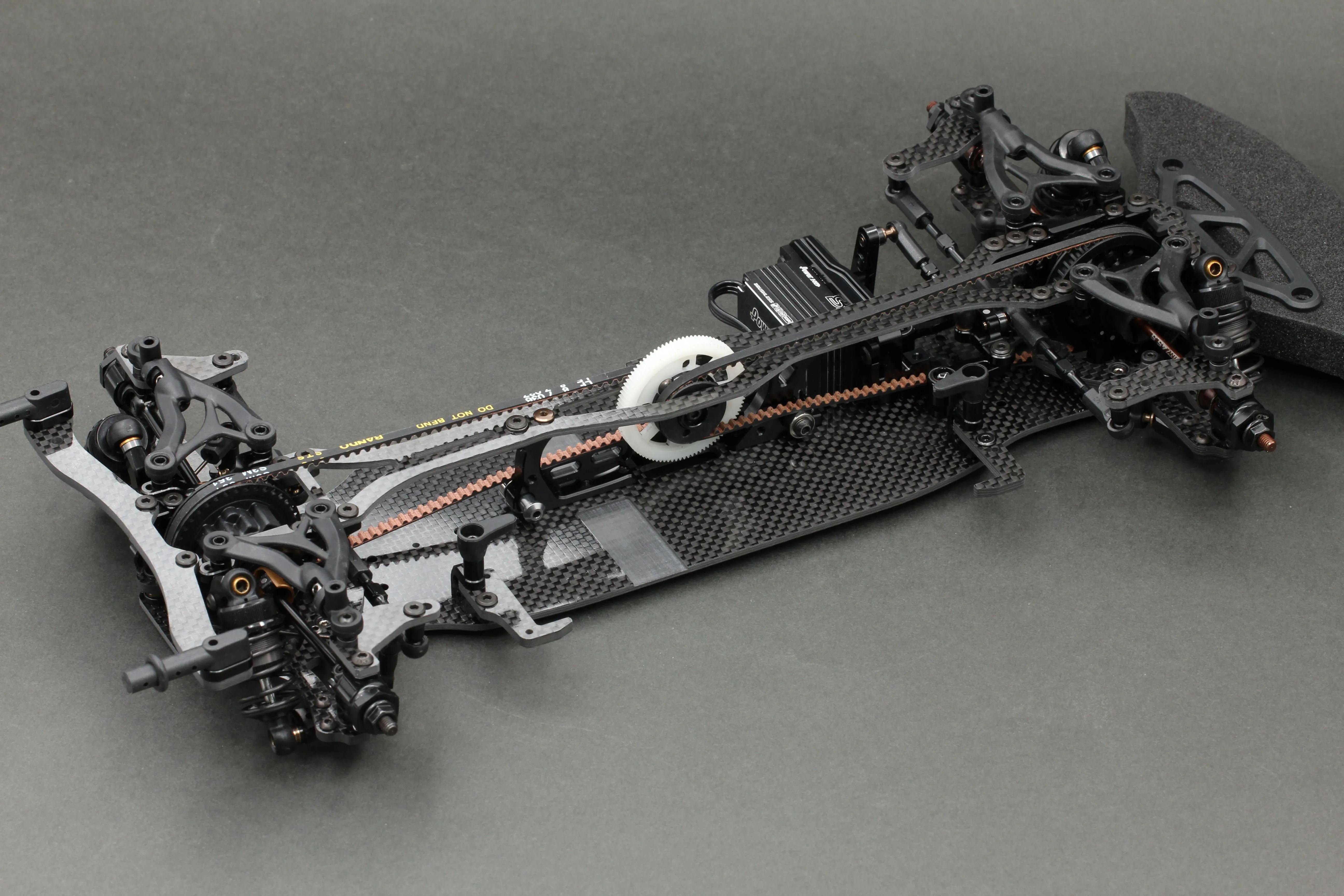

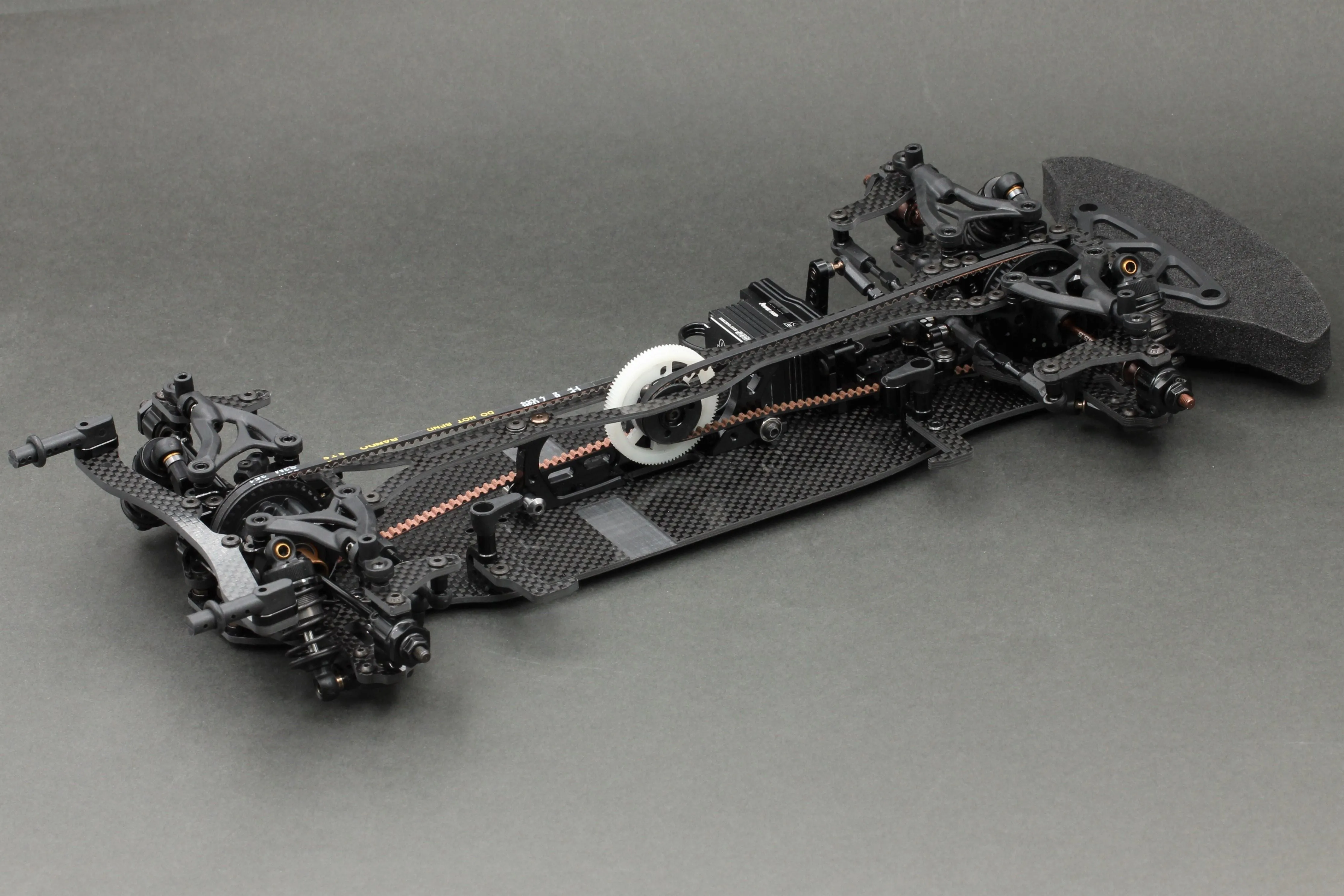

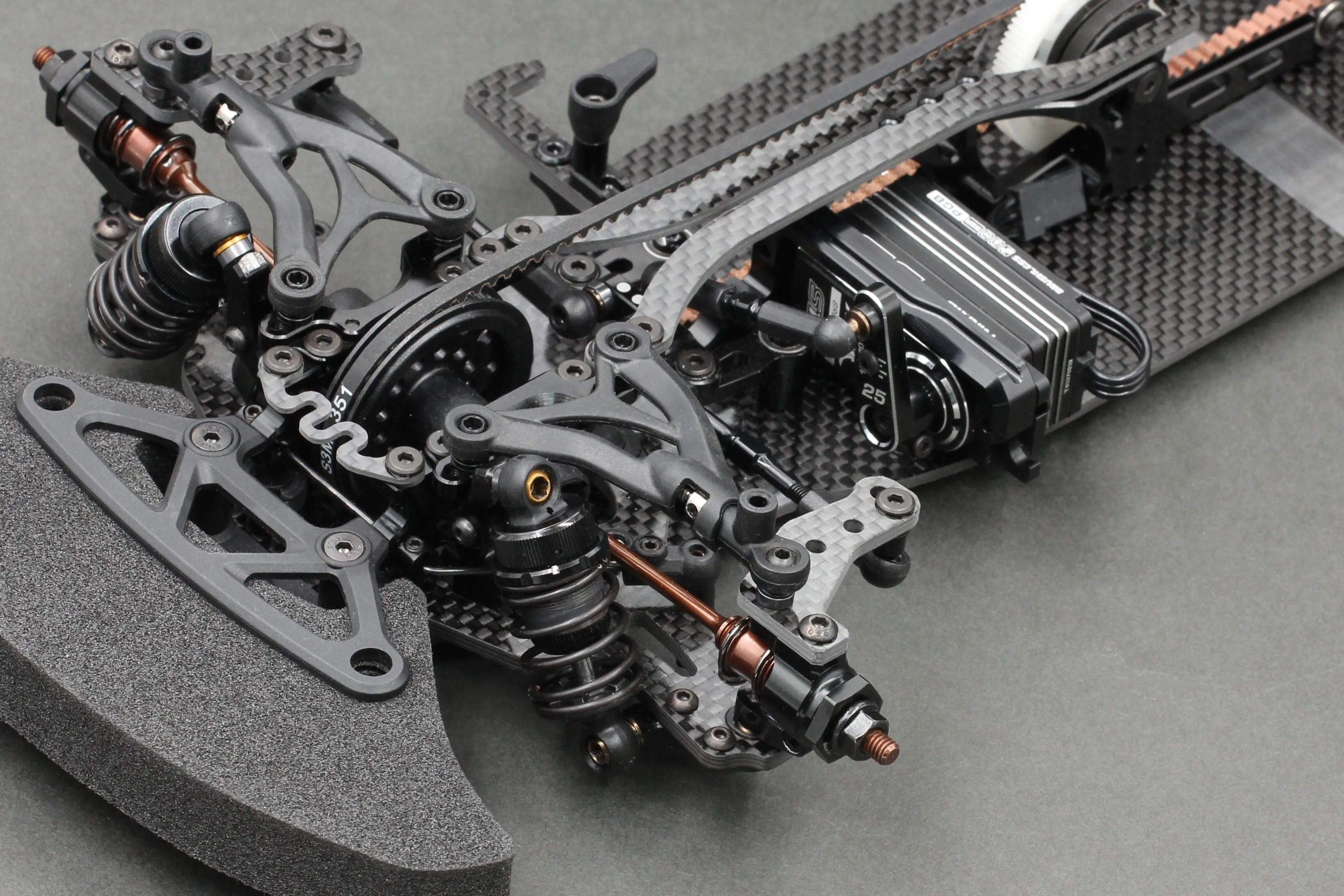

Destiny RX-10SR 3.0R Touring Car Kit (DRX-00015)
  • DefaultTitle

$ 61.40

$ 47.23
