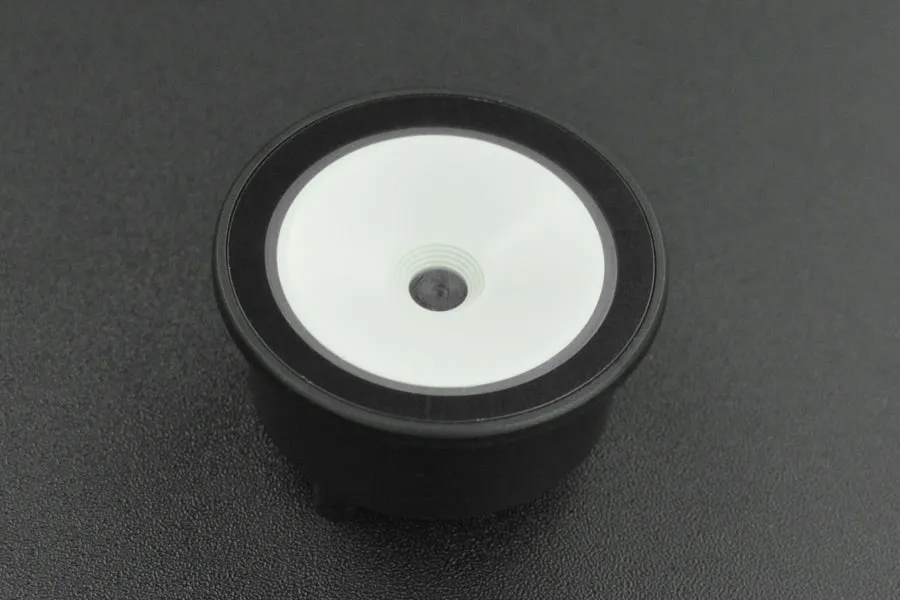

The GM73 code reader module is a high-performance code scanner that can capture common 1D and 2D codes like Barcode and QR on labels, papers, or even screens at a high speed of about 1s.
The module comes with superior reading performance utilizing advanced decoding algorithms based on smart image recognition, which is able to read all kinds of codes accurately. The scanner allows users to configure parameters by scanning setup codes, greatly reducing development difficulty. Besides, it has onboard micro USB and UART and can be conveniently embedded into various devices like self-service vending machines, metro gates, access control, checkout counter, and so on.
Features:
Smart image recognitionCapture speed of about 1sOnboard micro USB and UARTApplications:
Self-service vending machineMetro gateAccess controlCheckout counterSpecification:
Sensor: 640*480 CMOSIllumination: white LEDFocus: red LED1D Codes Supported: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Matrix 2 of 52D Codes Supported: QR Code, Data Matrix, PDF417Reading Accuracy: ≥5milDepth of Field: 30-150mm (Starting from the front camera, the mobile phone screen size of 5.2”)Scanning Angle: intersection angle 360°, elevation ± 55°, deflection angle ± 55°Viewing Angle: Inclination 60°, Elevation 46°Contrast: ≥25%Interface: TTL-232, USBDimension: about 30*24*7mm /1.18*0.94*0.28”Operating Voltage: DC 5VOperating Current: ≤180mAAmbient Light: 0~10000luxOperating Temperature: -20~50Storage Temperature: 40~70Operating Humidity: 5%~95% (Non-condensing)Product Includes:
GM73 Barcode & QR Code Scanning Module x1USB Cable x1TTL Adapter x1
