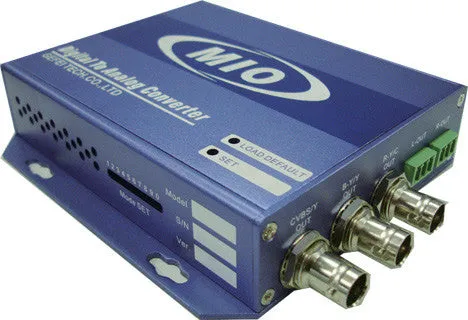

The MIO ENC-AUD is a miniature compact video D:A and audio de-embedder which converts SD-SDI to analog video and de-embeds two channels of audio. The converted analog video output can be CVBS/YUV/YC selected by DIP switch with NTSC/PAL/SECAM supported. The MIO ENC-AUD has a passive loop through which is advantageous in the event of a power outage.
This mini box requires a 12V DC power from an AC to DC power supply or 12V external source, such as a camera or battery. For user confidence and convenience there are two LEDs that indicate the status of source signal and power.

Features:

• Universal Video D:A and Audio de-embedder
• Input SD-SDI auto adapts format
• Output CVBS/YUV/YC selectable
• Supports NTSC/PAL format
• Broadcast audio quality with 10 bit processing
• LED indicators for signal source and power

Specifications:

• Digital Video Input:
• 1 x BNC, 75 Ohm, SDI
• Standard: SMPTE 259M-C, 270Mb/s
  Analog Video Output:
• 3x BNC, 75 Ohm, CVBS/YUV /YC Selectable
• Audio Output:
• 2 x 3pin phoenix, 110 Ohm balanced
• Digital Video Output:
• 1 x BNC, 75 Ohm, SDI Loopthrough
  LED Status Indicators: Power & Input signal locking
• Dimension: 124.5 x116.5x30mm
• Power: 12VDC 1.0A
• Working Temp.: 5 ?C - 25 ?C

Includes:

• 12VDC power adapter, 2 x 3 pin pheonix male connectors
